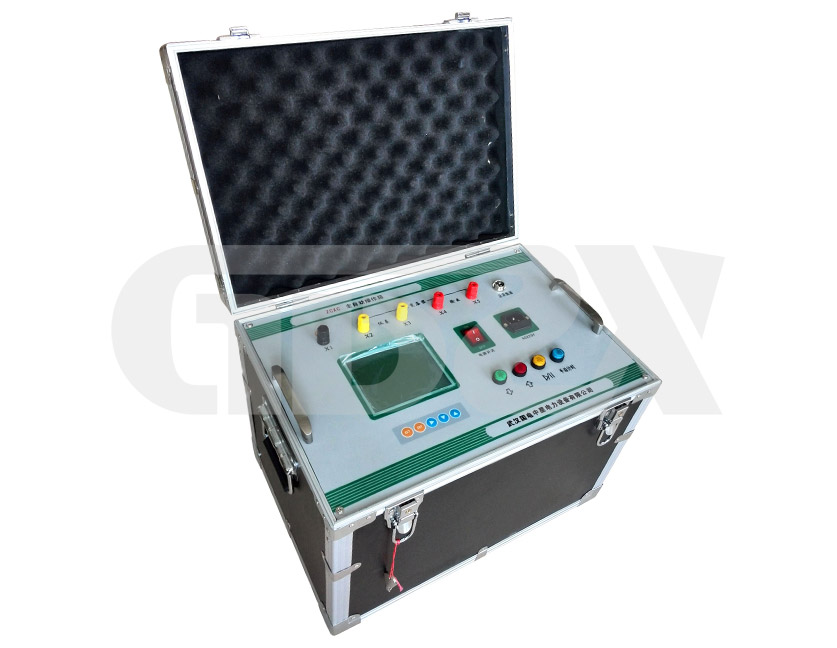

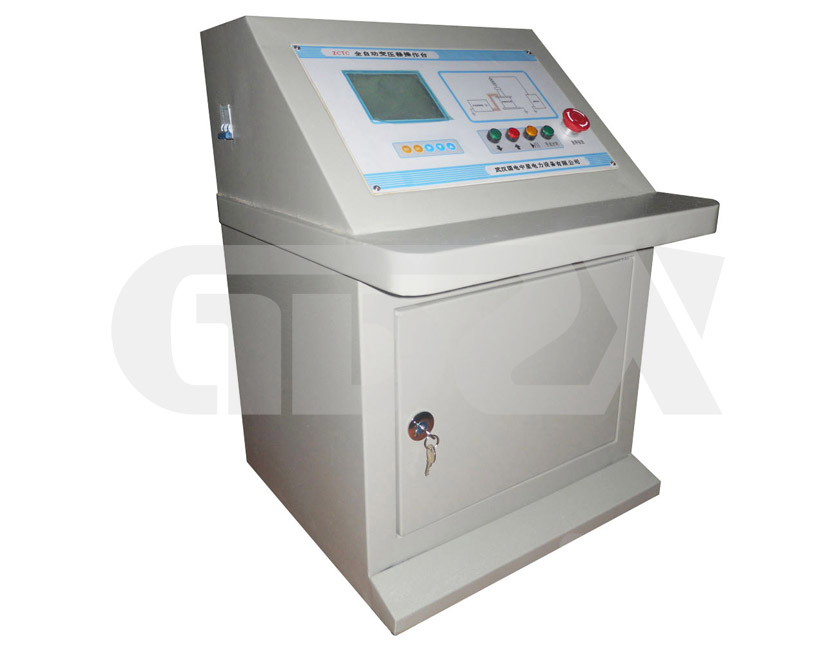

ZCX(T)C Automatic Test Transformer Controller
Manual
Video
ZCX(T)C Automatic Test Transformer Controller is produced special equipment for light test transformer, easy to maintenance, superior performance, safety and reliability, good structure, durable, easy to move, etc. It is necessary equipment for supply enterprises, large factories, metallurgy, power plants, railways and other electricity maintenance department.
It uses advanced microelectronic processing techniques, all using processes can be set in advance, and simple to operate. After setting all test items, automatically to test, without human intervention.
1. Voltage, current, timing and results clearly displayed on 5.7 inch screen with backlight
2. Sound and light alarm for working status reminding, easy to operate
3. Touch panel, safe and reliable,
4. Digital adjustment, convenient to use
5. Keyboard to input current and voltage ratio
6. Over-voltage, over-current protection, accurate and safe
7. One key to chose AC or DC mode
8. During automatic testing, voltage increase and decrease can be paused at any time
9. Strong anti-interference ability
10. Voltage output is cut off automatically and alarm when the HV/LV current is over setting value.
11. Time relay on-off condition can be set, and time range: 1-9999 seconds
12. Optional extended functions such as remote communications, calibration interface etc.
13. Little volume, light weight, compact structure, can stand wear and tear
1.Measurement range: 0-9999 digital
2.Accuracy: 1.5%±2digit(F.S)
3.Capacitance: 8~500Kva
4.Setting mode: touch panel, digital key-in, set value permanently save even after power cut-off
5.The motor returns to zero automatically at abnormal status,
6.Automatically back to zero at abnormal situation or under voltage
7.Power supply voltage: AC220V±15%, 50Hz±2Hz
-
