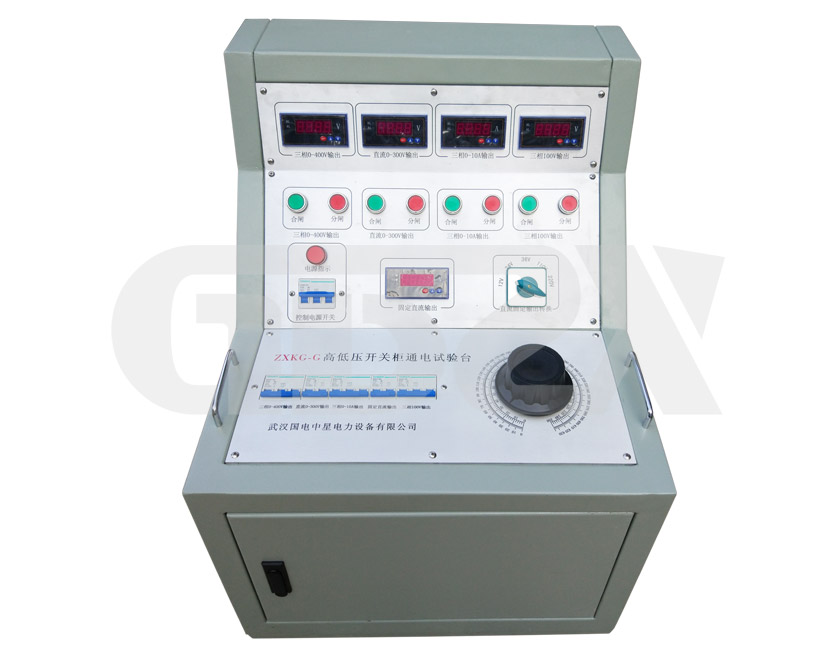

ZXKG-G HV-LV Switchgear Power Test Set

High-low voltage switchgear electrifying test bed is used for high and low voltage switchgear producers to do various electrifying test before products leaving the factory. It can provide all kinds of ac, dc power, and is convenient for test to check if switch equipment is normal or not with much efficiency.

Input Power: Three-phase four-wire AC380V

Output voltage and current

1. Three-phase AC100V output (fixed value)                     group 1

2. Three-phase AC 0-10A output (<100V value can be adjusted)   group 1

3. AC 0-400V output, Current <10A                              group 1

4. DC operating voltage output DC 0 ~ 260V                     group 1

5. Single-phase AC220V output (fixed value, plug form) in      group 2

6. Three-phase AC380V output (fixed value, wiring terminal)    group 1

7. DC fixed voltage 24V, 36V, 11V, 220V output                 group 1

8. Overall dimensions: 550 * 750* 800 mm

9. Weight: 45kg
