ZGF Series DC High Voltage Generator
Manual
Video

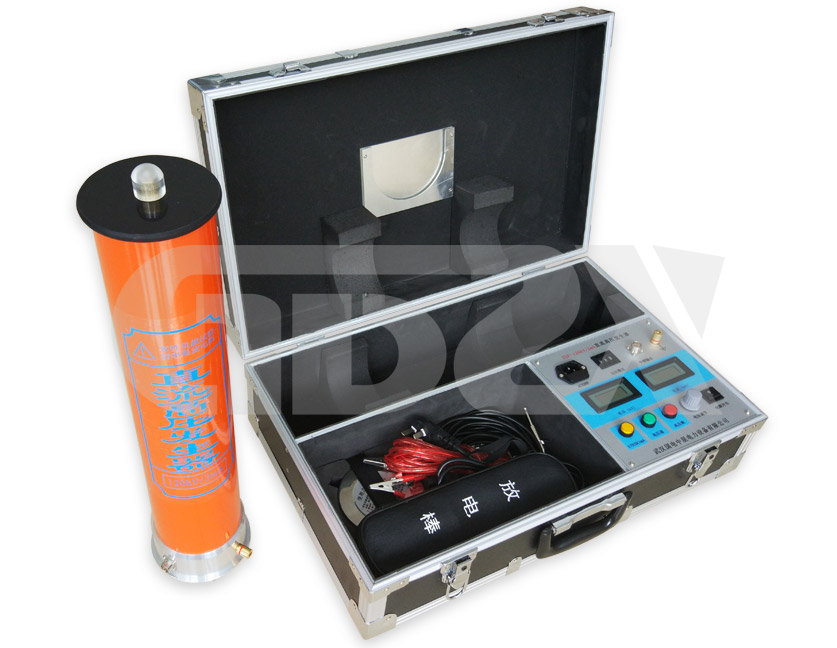

ZGF Series DC High Voltage Generator is a new generation of portable High Voltage DC Generator based on the new standard of the Chinese electric power industry DL/T848.1-2004. Mainly used in electric power sector, mining, metallurgy, steel and other enterprises of the power sector to the zinc oxide lightning arrester, power cable, transformer, generator and other high voltage electrical equipment for DC voltage test.
1. Aluminum alloy carrying box.
2. With High Frequency Voltage-multiplying circuit, PWM technology and high power IGBT device.
3. Adopts voltage feedback, Higher voltage stability, smaller ripple coefficient.
4. Full range smooth voltage regulation, regulation accuracy≤1%, stability≤1%, voltage current error +/-1.5%±2d.
5. Raise voltage from zero voltage potentiometer.
6. The 75% UDC 1mA function button is convenient for Zinc Oxide Arrester test.
7. Over voltage cylinder uses dialing number set, and the error +/-2%.
8. It’s coated with special insulating materials with good electric performance and water resistance.
9. The product conform to DL/T848.1-2004 technology requirement, also passed test of quality inspection.

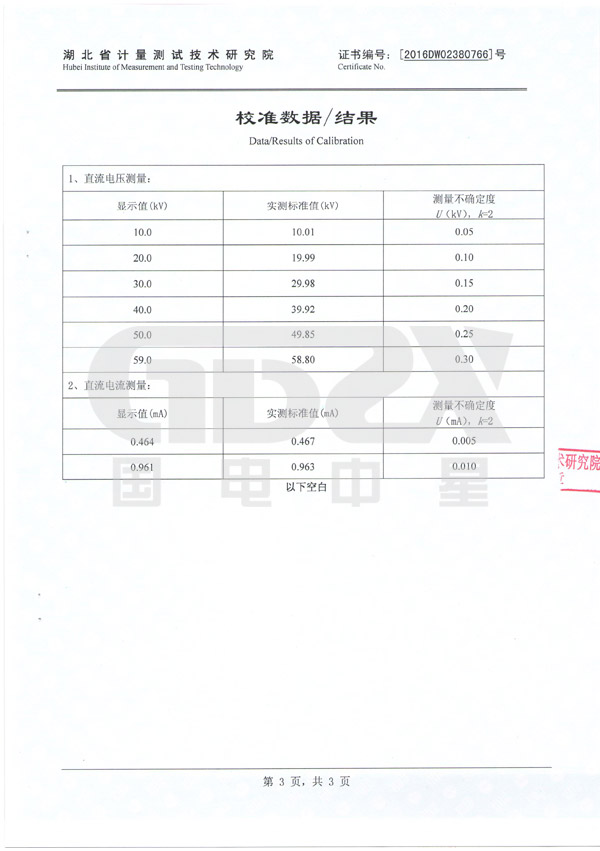

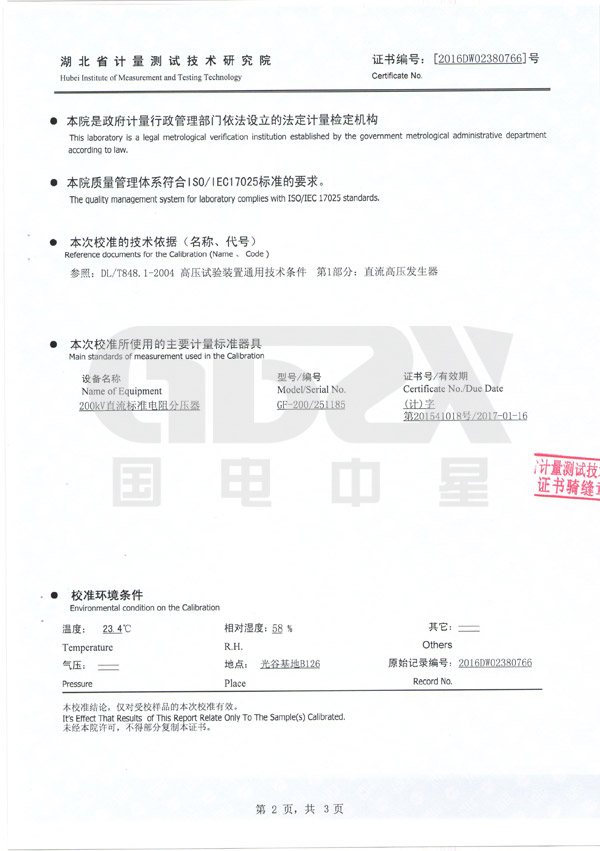

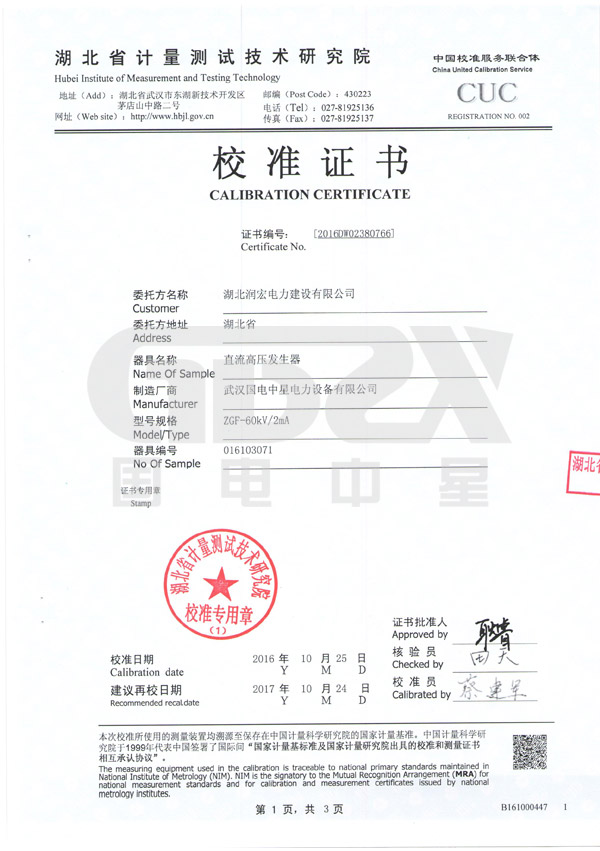

Our products are manufactured in strict accordance with international and national standards and industry regulations. Our products passed the ISO9001 international quality management system and got certificate by the national, provincial and municipal electric research institutes, metrology centers and power authority departments. We also obtained license for manufacturing Measuring insturments, fully meeting GB / T19001-2008 quality management system requirements, GB / T24001-2004 environmental management system requirements, GB / T28001-2011 occupational health and safety management system requirements.
-
